JBE-4A

JETCO JBE 4A MILLING MACHINE Capacity:

X axis is align motorized, Table size is 254×1270 mm, X & Y & Z axis movements of the table are 825 & 400 & 406 mm, T slot size is 16 x 3 x 63 mm, Pinol Diameter is 105 mm. Made in Taiwan.

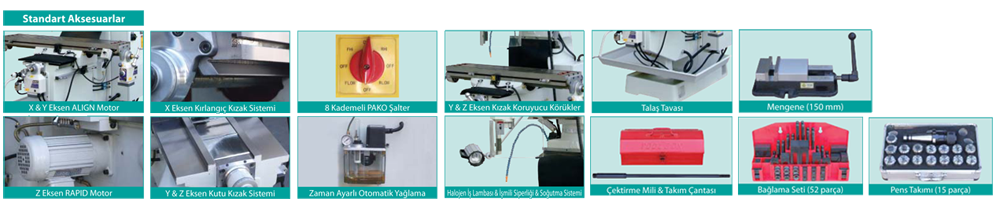

JETCO JBE 4A MILLING MACHINE Accessories:

X & Y Axis Align motor, X axis dovetail slide system, Timed automatic lubrication, Halogen work light & spindle guard & cooling system, Pull spindle & Tool case, Z axis rapid motor, Y & Z axis box slide system, Y & Z axis box slide system, Y & Z axis slide protection bellows, Chip pan, Vise, Clamping set, Collet Set

TECHNICAL DETAILS

TECHNICAL DETAILS

UNIT

JETCO JBE 4A MILLING MACHINE

Table sizes

mm

254 x 1270

T. canall

mm

16 x 3 x 63

x axis travel

mm

825 (manuel: 914)

y axis travel

mm

400

z axis travel

mm

406

Headstock movement

mm

610

Spinlde quill stroke

mm

127

Quil diameter

mm

105

Motor

HP

5

Spindle taper

ISO40

Speed stage

20 stage

Spindle speed

rpm

68-6524

Headstock swivel

r/l 90° – f/b 45°

Net weight

kg

1350
