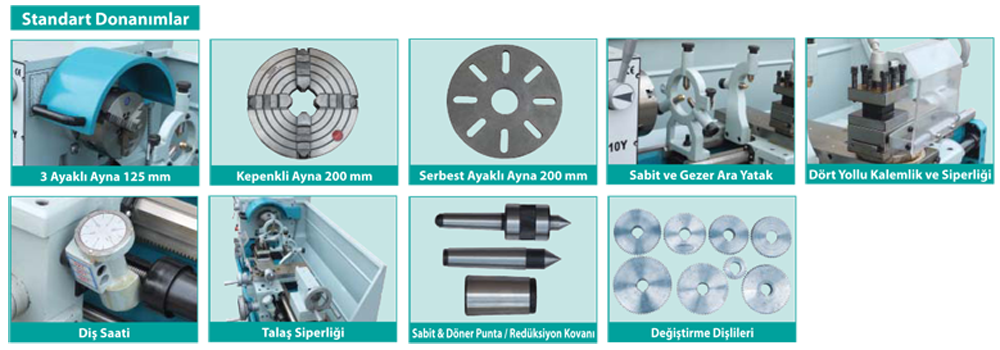

3-jaw chuck Ø 125 mm, 4-jaw chuck Ø 200 mm, Flat chuck 200 mm, Steady rest, Follower rest, MK3 live center, MK3 dead center, Reducer cone MK5/MK3, thread adjustment, 4 way tool post, halogen lamb, changeable threads, Foot padel, Cooling System, Toolkit.
| TECHNICAL SPECIFICATIONS | UNIT | JETCO JML-3010Y LATHE |
| Swing over bed | mm | 300 |
| Swing over carriage | mm | 178 |
| Swing over gap | mm | 430 |
| Bed width | mm | 187 |
| Distance between centers | mm | 1000 |
| Spindle nose | D1-4 | |
| Spindle bore diameter | mm | 38 |
| Spindle taper | MT5 | |
| Spindle speed steps | 9 | |
| Spindle speed range | rpm | 60-1500 |
| Longitudinal and cross feed number | 32 | |
| Longitudinal feed rate | mm/rev | 0.052 – 1.392 |
| Cross feed rate | mm/rev | 0.014 – 0.38 |
| Max. cross slide travel | mm | 160 |
| Max. compound slide travel | mm | 85 |
| Tool post size | mm | 16×16 |
| Metric thread pitch number | 26 | |
| Metric thread pitch range | mm | 0.4 – 7 |
| Inch thread pitch number | 34 | |
| Inch thread pitch range | TPI | .4 – 56 |
| Tailstock quill travel | mm | 95 |
| Tailstock taper | MT3 | |
| Main motor power | kW | 1,1 |
| Dimensions LxWxH | mm | 1600 x 730 x 1270 |
| Net weight | kg | 480 |
